2023 Beelink Mini S

Deokgon Kim published on 2023-11-18

Beelink Mini S

I wasn’t satisfied by Pico PC so,

I bought another mini PC. the Beelink Mini S

Here are some specs.

Better than Pico PC

Silent : most important Pico PC doesn’t include PWM controlled FAN. (what I mostly disappointed about Pico PC)
Slightly faster. N95 is slightly faster than J series

Weaknesses?

Deokgon Kim published on 2023-11-15

When I was using raspberry pi, I bought a IR transceiver module for Arduino. and used it for several years. IR transceiver

Raspberyr Pi, IR Transceiver and DHT11

And this year, I am interested in ESP8266, so I bought another IR receiver, IR transmitter.

Install esp8266 and voltage converter on breadboard.

esp8266, breadboard, and ir receiver

Install IR receiver and IR transmitter in front of tv

Deokgon Kim published on 2023-11-02

Bought : ₩58,000 2013/04/24
- with : PiFace, BOARD, I/O EXPANSION, RASPBERRY-PI (₩48,570)
At First : install raspbian. tested relay, and tested led on PiFace
As a IR Remote controller : telegram-bot-try2, 2019 May IoT project
As a Thermal sensor : finally just read DHT11 temperature/humidity and send it to the server.

Read more...
Open Source, Raspberry Pi

Deokgon Kim published on 2023-08-27

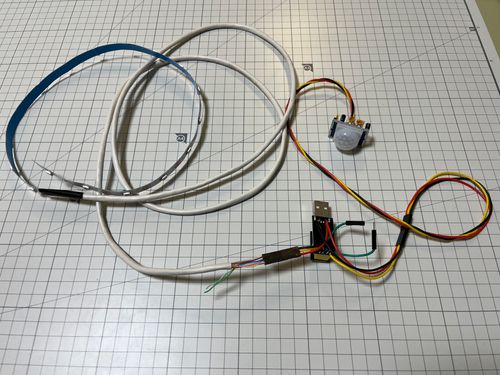

I wanted to implement automatic LED light, when I approach kitchen.

WS2812B
- vcc : to USB 5v positive pin
- gnd : to USB ground pin
- data : to GPIO1 of ESP01
HC-SR501
- vcc : to USB 5v positive or 3.3v
- gnd : to USB ground pin
- data : to GPIO0 of ESP01
